Accessing Advanced Visualization

The Advanced Visualization toolbar is collapsed by default and appears as a triangle icon  at the top right corner of your viewport. Click the triangle icon to expand the Advanced Visualization toolbar and trigger a reformat of the series. A thumbnail is also generated and added to the Thumbnail list.

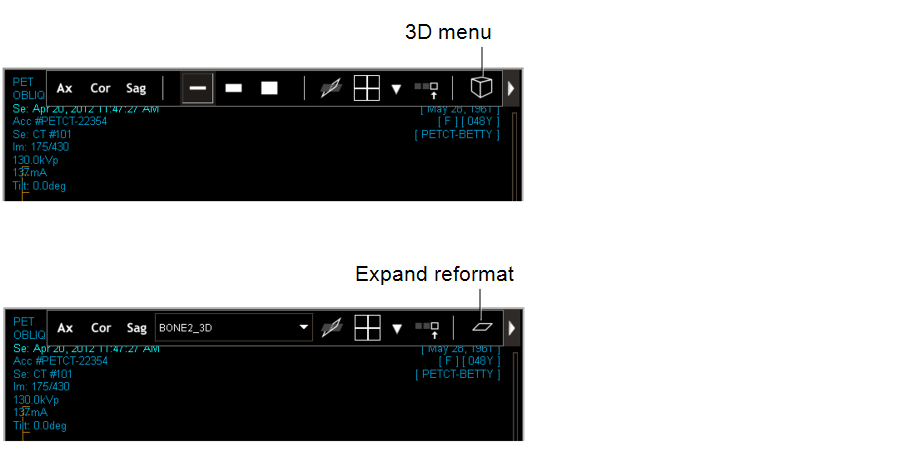

When the Advanced Visualization toolbar is expanded, the image reformat tools are shown by default. To switch the toolbar to show 3D visualization tools, click the 3D menu button. To switch the toolbar back to image reformatting tools, click the expand reformat button.
