Flipping Images

Flip an image to mirror it around the horizontal or vertical axes, so that it appears inverted or upside-down. InteleViewer applies flip settings to all images in the series.

To flip an image horizontally or vertically:

  1. Select the required image.

  2. Do any of the following:

    • To flip an image horizontally, from the main menu, choose Tools | Flip Horizontally or press CTRL + H.
    • To flip an image vertically, from the main menu, choose Tools | Flip Vertically or press CTRL + V..
    • From the Free Rotate Tool menu in the toolbar, select Flip Horizontally or Flip Vertically.

    The image is flipped.

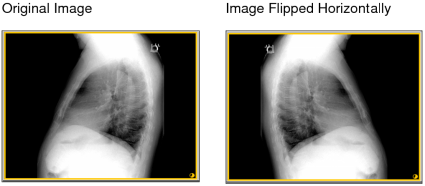

    Flipped image horizontally

  3. To revert the image to its original orientation, choose Tools | Reset (Ctrl+Backspace).
