Viewing Multiple Datasets

DX, CR, and MG modalities are single-image-set modalities, whose series are divided into datasets containing one single image each.

Datasets are also created for series that contain multi-frame images such as multi-echo MR. Each sequence is separated into a dataset containing multiple images.

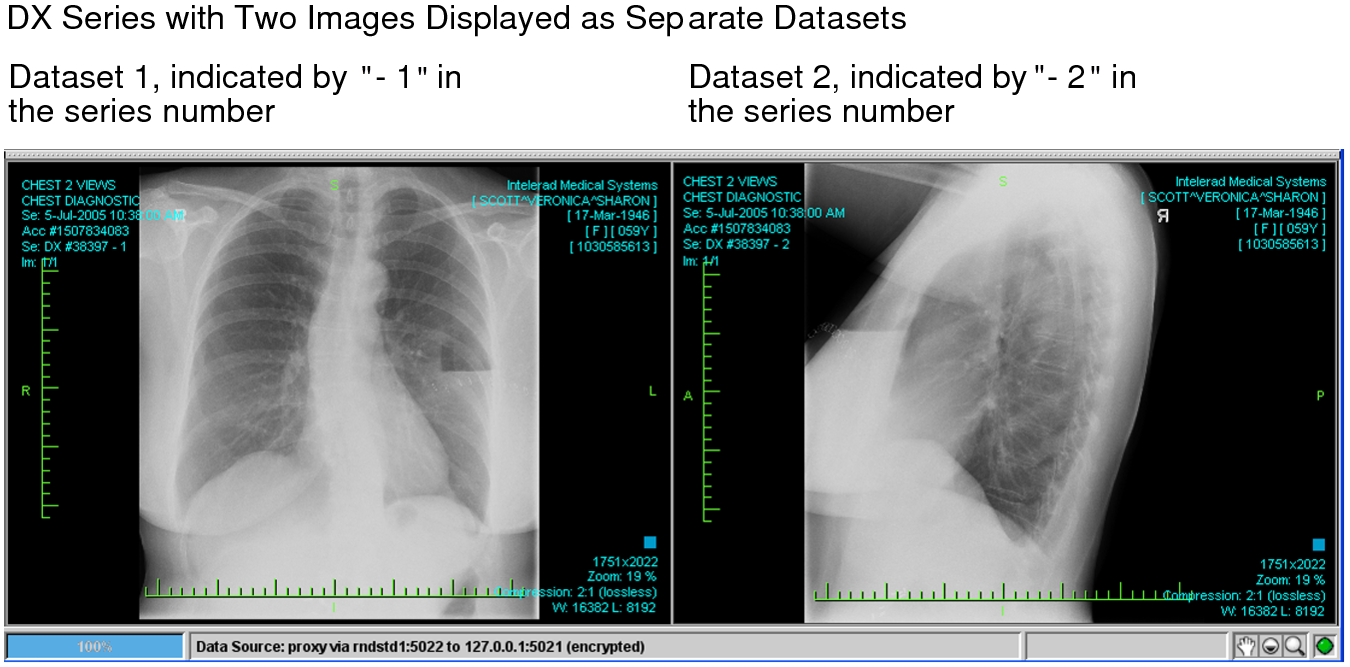

Series images are displayed in datasets in the viewport or thumbnail strip. In the text overlay, datasets are indicated by a dash (-) followed by the dataset number. For example, a DX series may contain ten images. These are divided into datasets so they can be displayed separately. Each dataset appears as a separate series in the viewports and separate thumbnails also appear for each.

Each dataset behaves in the same way as a series.
